Audio Technica UHF Powered Wide-Band Antenna

Powered Wide-Band UHF Antenna for Clear Signals

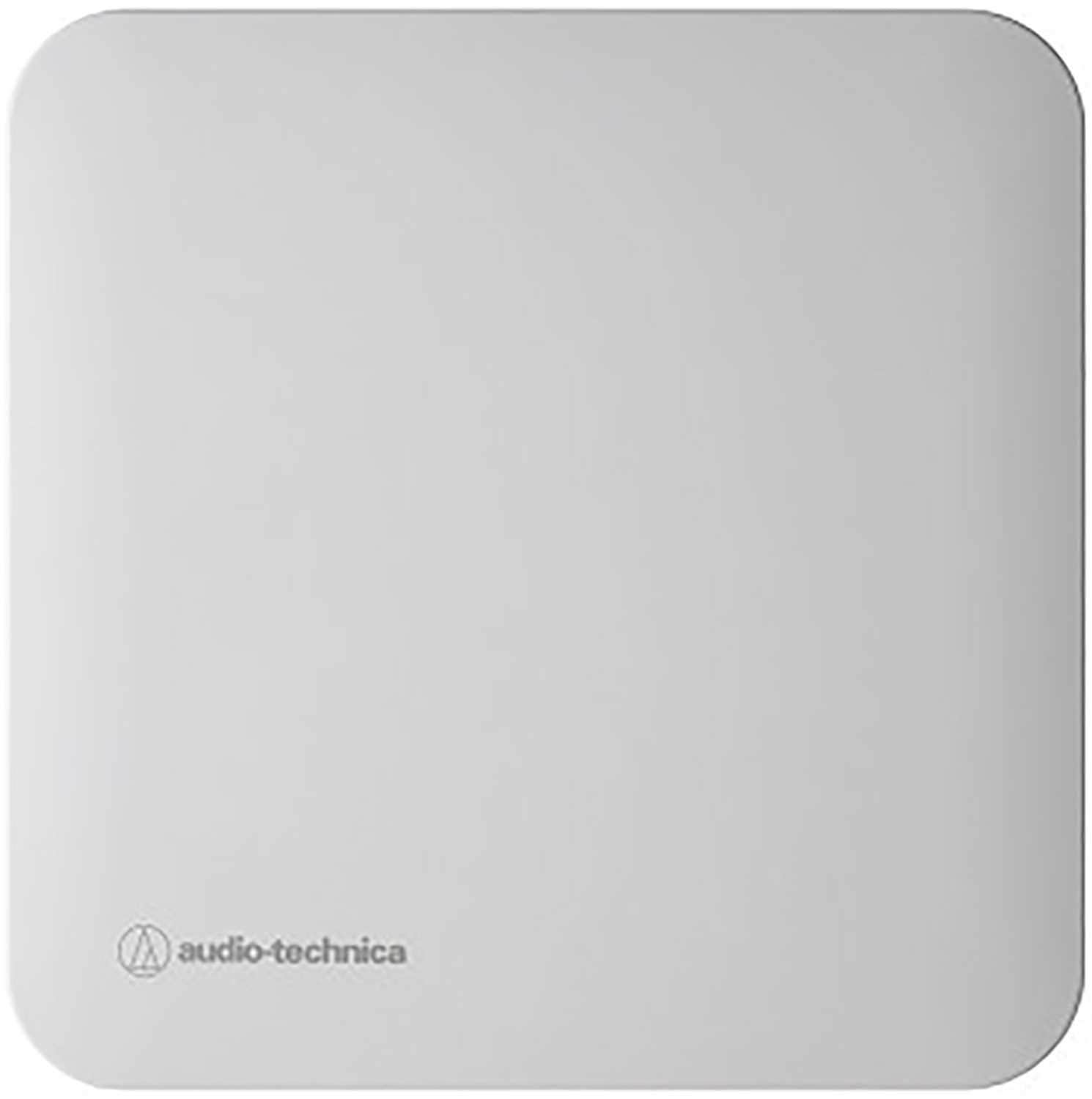

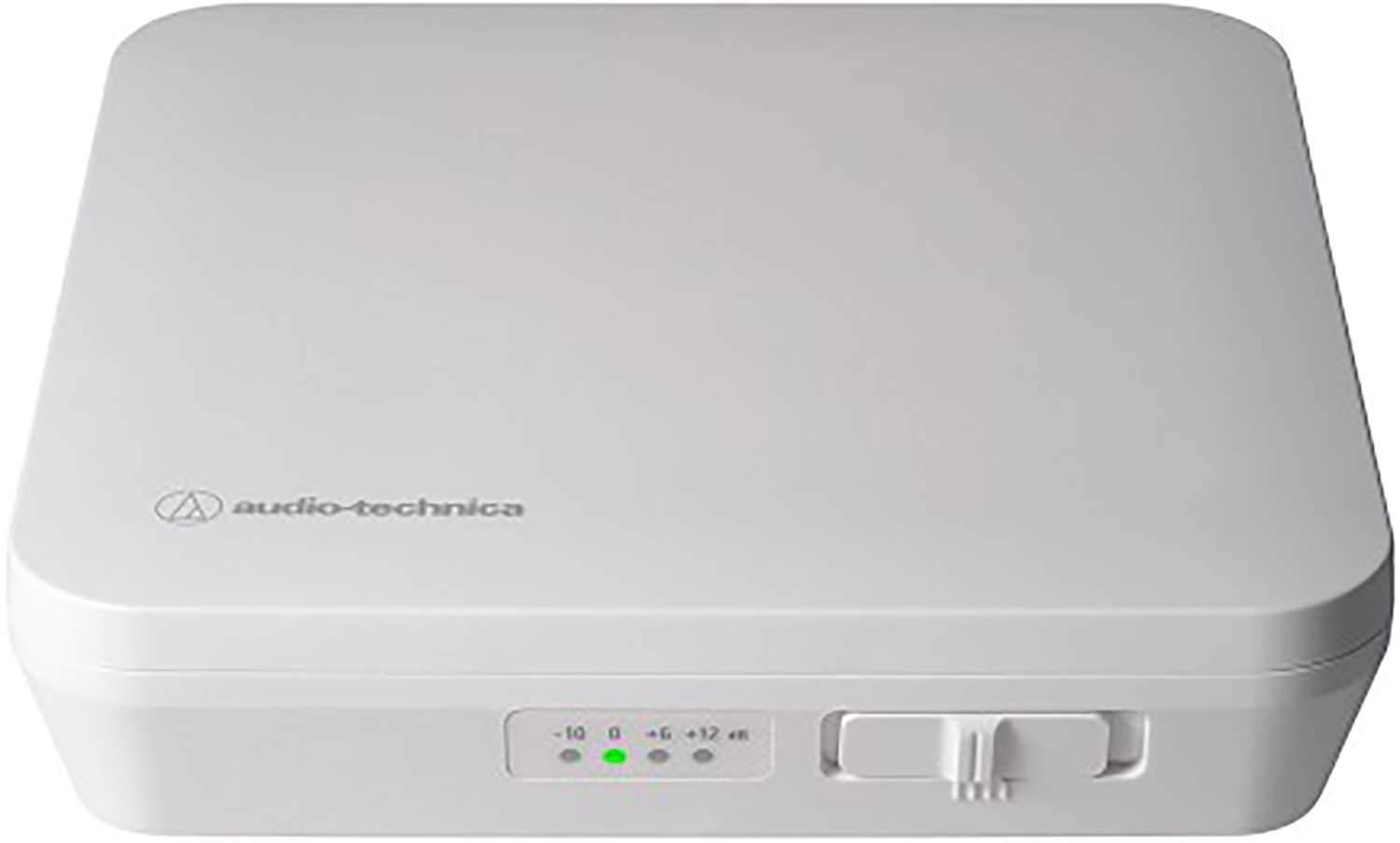

The ATW-A410P is an amazing antenna! • It has a modern and low-profile design, so you can easily mount it on any room wall or ceiling. • It comes with a 4-position switchable amplifier (-10 dB / 0 dB / +6 dB / +12 dB) to handle cable loss. The LED indicator makes it a breeze to see the current gain setting.

Features:

• Boosts UHF wireless signals like a pro (470-990 MHz)
• Four convenient gain levels (-10 dB / 0 dB / +6 dB / +12 dB)

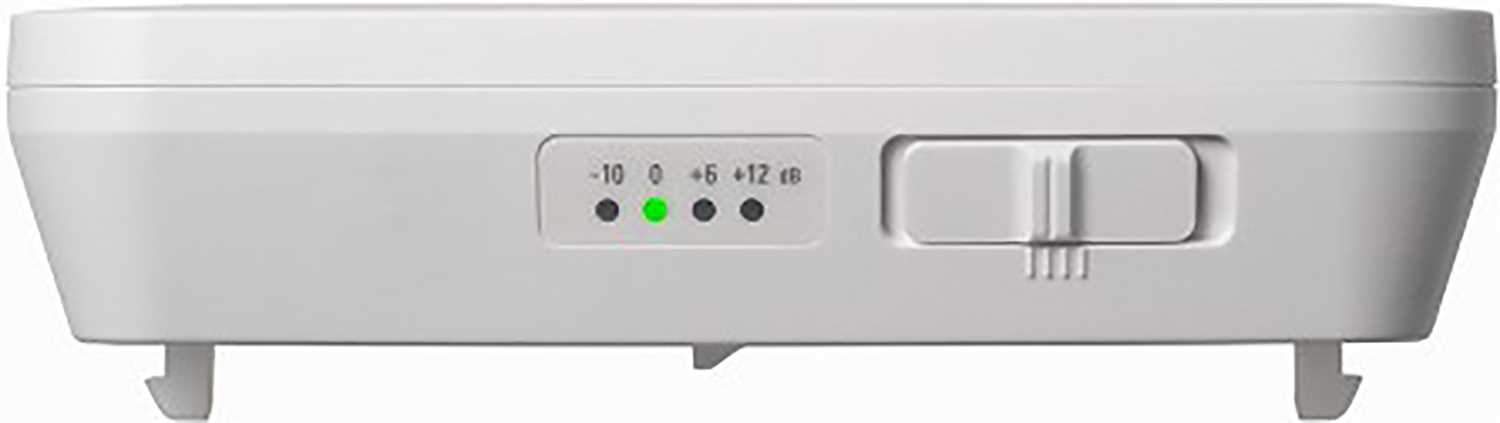

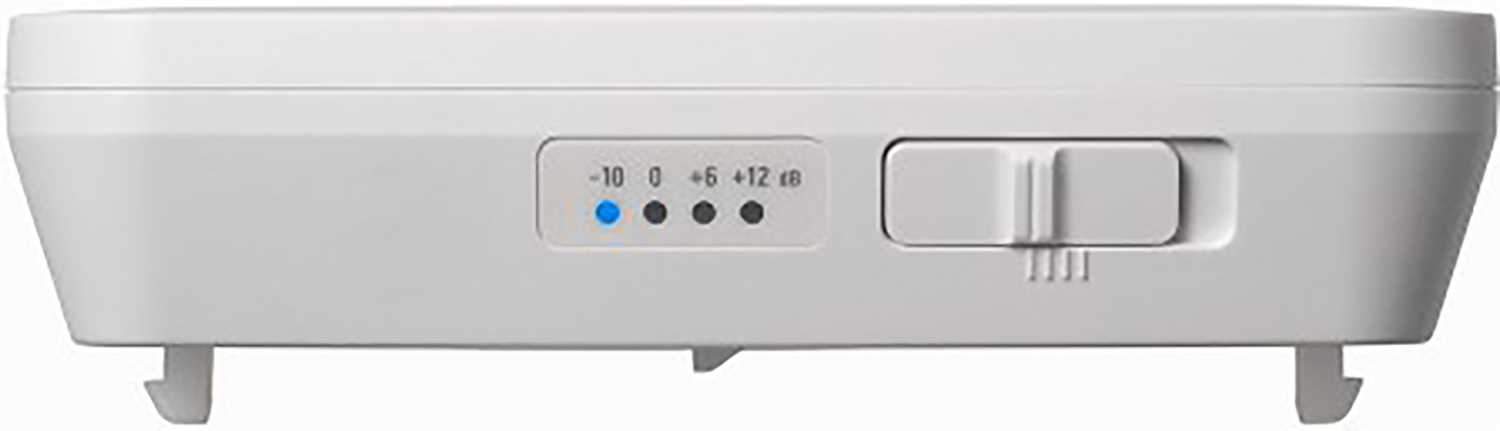

• LED indicator shows gain settings clearly
• Looks great and fits anywhere with its low-profile design
• Can be mounted on walls or ceilings

Specifications:

• Gain: -10 dB / 0 dB / +6 dB / +12 dB
• OIP3: > 30 dBm typical (within specified bandwidth)

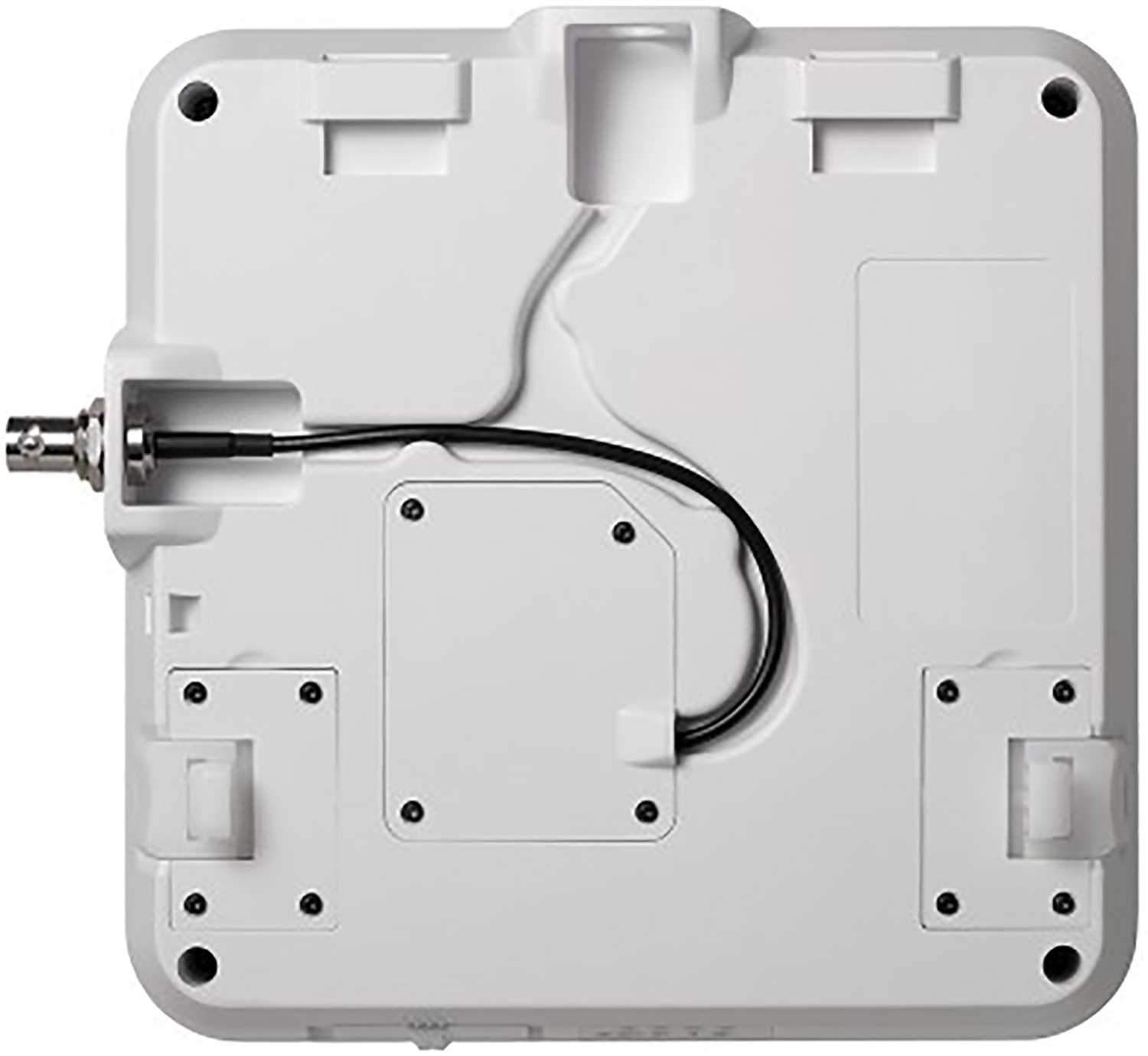

• Termination Type: BNC-J
• Operating Bandwidth: 470-990 MHz
• Operating Temperature Range: -10 to 50
• Dimensions: 175 x 175 x 50 mm (without bracket)
• Weight: 390 g (without bracket)

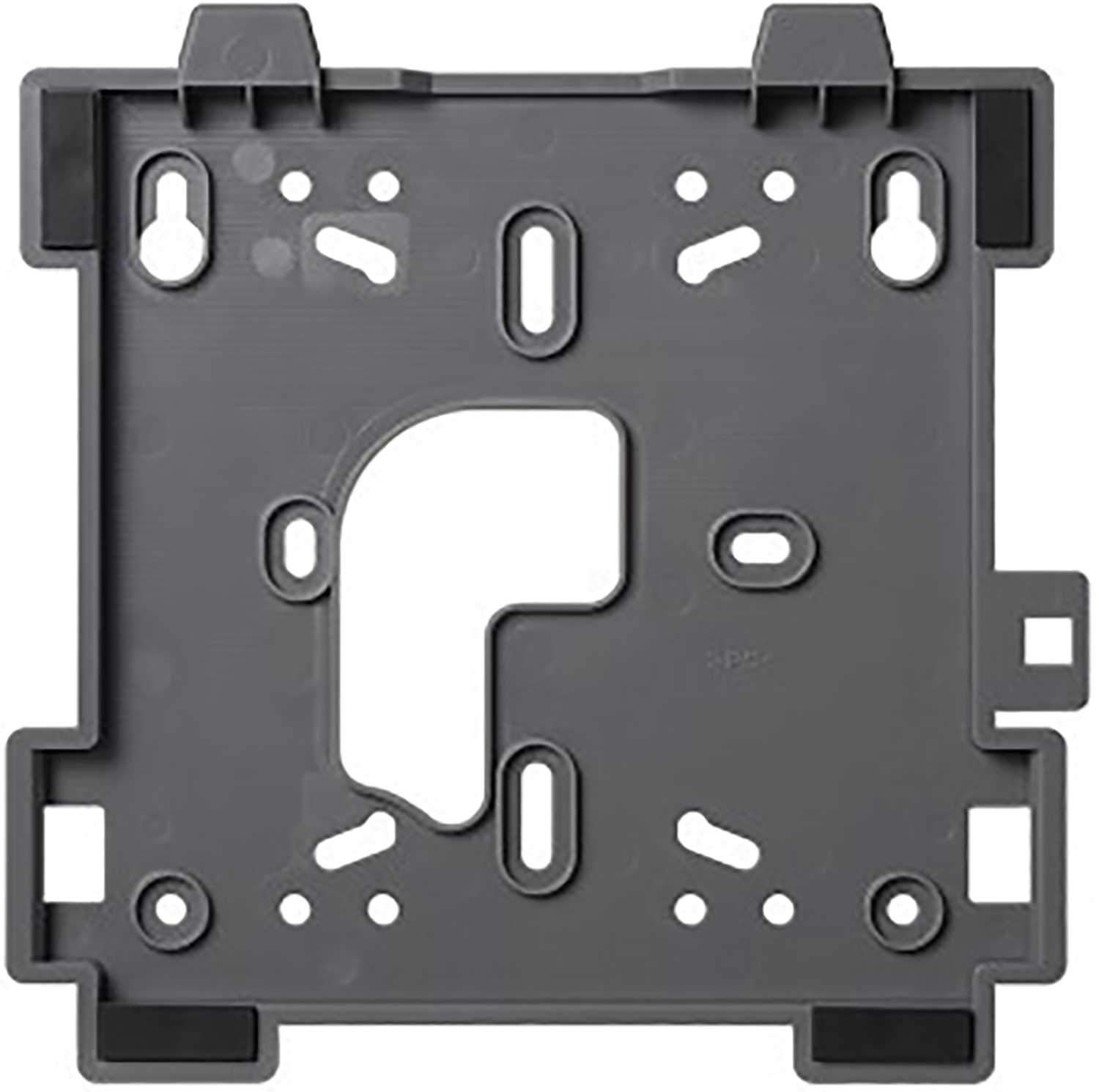

• Accessories: Mounting bracket, screws
• Impedance: 50 ohms typical (within specified bandwidth)

This antenna is perfect for anyone who wants a strong UHF signal. Whether you're in a home or office, it can be easily mounted on a wall or ceiling. With its modern design, it won't stand out. It has a 4-position switchable amplifier to handle cable loss. The LED indicator makes it easy to see the gain setting. Dimensions are 175 x 175 x 50 mm (without bracket) and it weighs 390 g (without bracket). Comes with a mounting bracket and screws.
