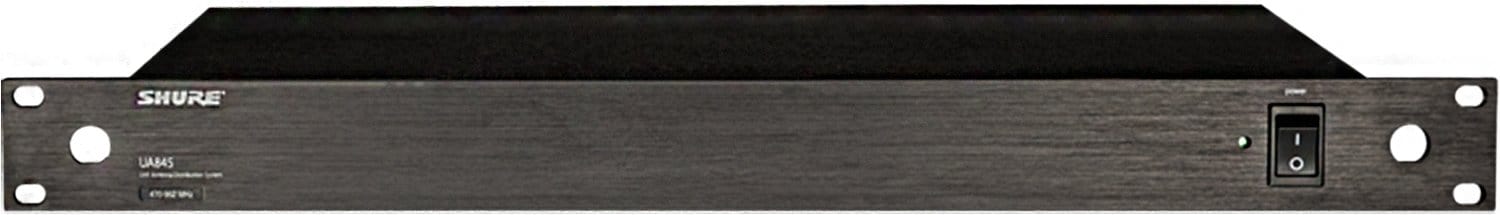

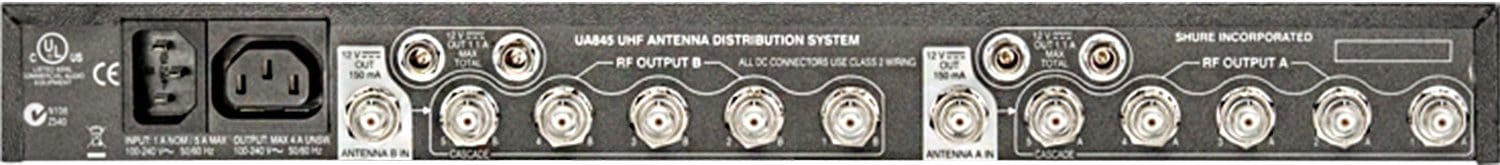

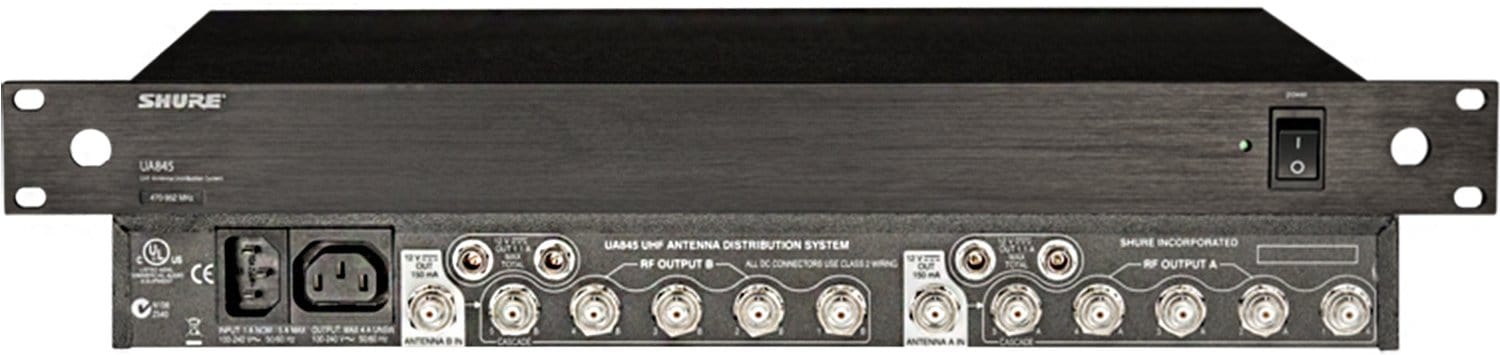

Shure UA845 Wideband UHF 5-Way Antenna and Power Distribution System
The Shure UA845 is an amazing system that supercharges your wireless microphone setup! Here's why:
• Seamlessly integrates with Shure U4S, U4D, or UC4 wireless microphone receivers.
• Dual antennas capture incoming RF signal and distribute it via 4 BNC type connections.
• Amplifies the signal on output to compensate for insertion loss, so you get crystal-clear sound.
Specifications:
- Carrier Frequency Range: US: 500 - 900 MHz
- Connector Type: BNC-type x4
- Gain Control:
- 3dB typical, 0dB to 3.5dB from antenna input (Output ports 1-4)
- 1dB typical, -1.6dB to +1.8dB from antenna input (Cascade port)
- Impedance: 50 ohms
- Operating Voltage:
- AC Power Consumption
- 15W per unit typical (when used with 4UC4's, 55W max.)
- Weight: 7 lbs, 5 oz. (3.32 Kg)
- Dimensions: 1.75 x 19 x 11.63' (44.5 x 482.6 x 295.3) (HxWxD)
- Package Weight: 12.1 lbs.
- Box Dimensions (LxWxH): 23.3 x 17.8 x 3'
The Shure UA845 Wideband UHF 5-Way Antenna & Power Distribution System is perfect for anyone looking to enhance their wireless microphone setup. It's great for events like concerts, conferences, or presentations where clear audio is crucial. With this system, you can connect up to four receivers to the same antennas, and even daisy-chain to a fifth receiver or another UA845. It has power connectors to directly power Shure UHF and UC Wireless systems. The system has a carrier frequency range of 500 - 900 MHz in the US, with BNC-type connectors. It weighs 7 lbs, 5 oz. (3.32 Kg) and has dimensions of 1.75 x 19 x 11.63' (44.5 x 482.6 x 295.3) (HxWxD). The package weight is 12.1 lbs. and the box dimensions are 23.3 x 17.8 x 3'.
