Shure MXCWAPT-A Wireless Access Point Transceiver - USA

Shure MXCWAPT-A US Wireless Access Point Transceiver - Your Conference Audio Solution

The Shure MXCWAPT-A Access Point Receiver is a must-have for your Microflex Complete Wireless Conference System in the US. • Manage audio routing, frequency coordination, and system control for up to 125 wireless conference units with ease. • Enjoy crystal-clear audio as it scans 2.4 and 5 GHz bands, finds the clearest channel, and uses DFS spectrum for more channels. • Enhanced privacy with AES-128 encryption.

This Access Point also features a Dante networked audio connection supporting up to 10 input and 10 output channels. Connect your wireless microphone or external sound reinforcement system via analog XLR audio. Configure basic settings without a laptop using the information display and controls. Power it with a standard PoE switch or injector, and mount it on the wall, ceiling, or place it on the table.

Features:

• Controls up to 125 MXCW640 wireless conference units
• Bidirectional wireless connection for seamless audio and real-time control
• Operates in 2.4/5 GHz frequency bands, including DFS spectrum
• Automatic frequency coordination, interference detection and avoidance
• Dante digital audio (10 inputs/10 outputs)
• Analog audio input and output (XLR)
• One Ethernet cable for audio, control, and PoE power
• AES-128 encryption for enhanced privacy

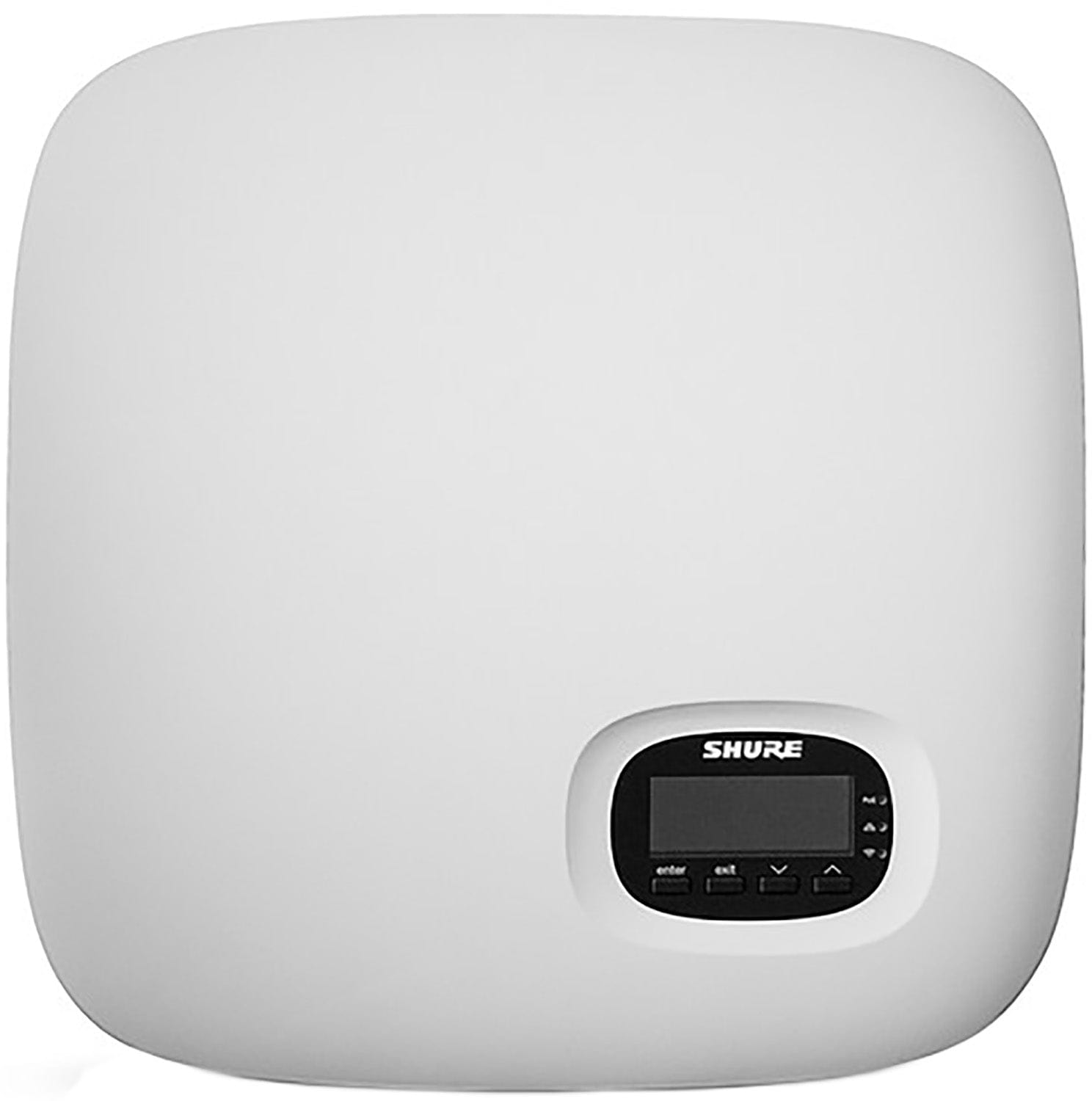

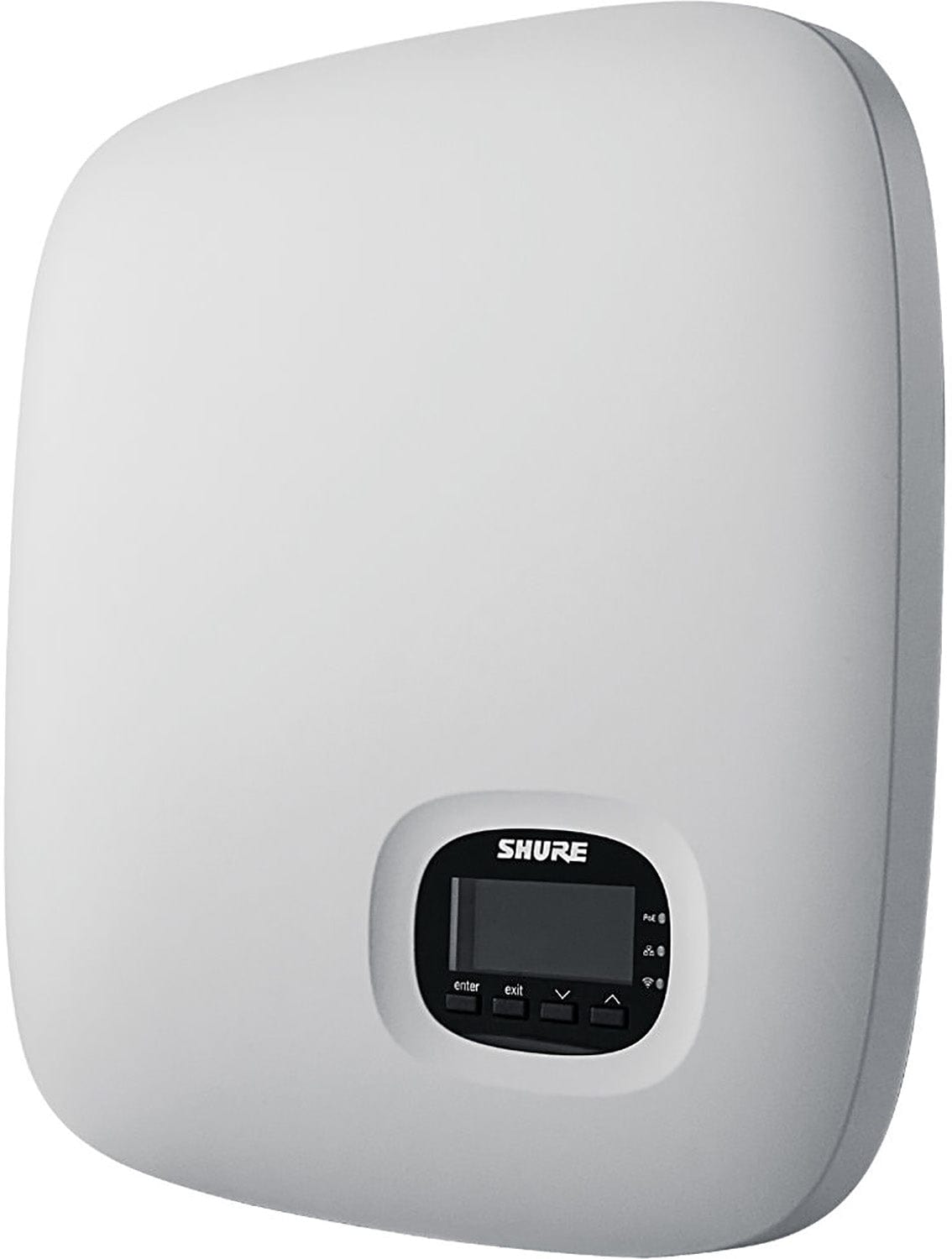

• Display for basic system configuration without a laptop

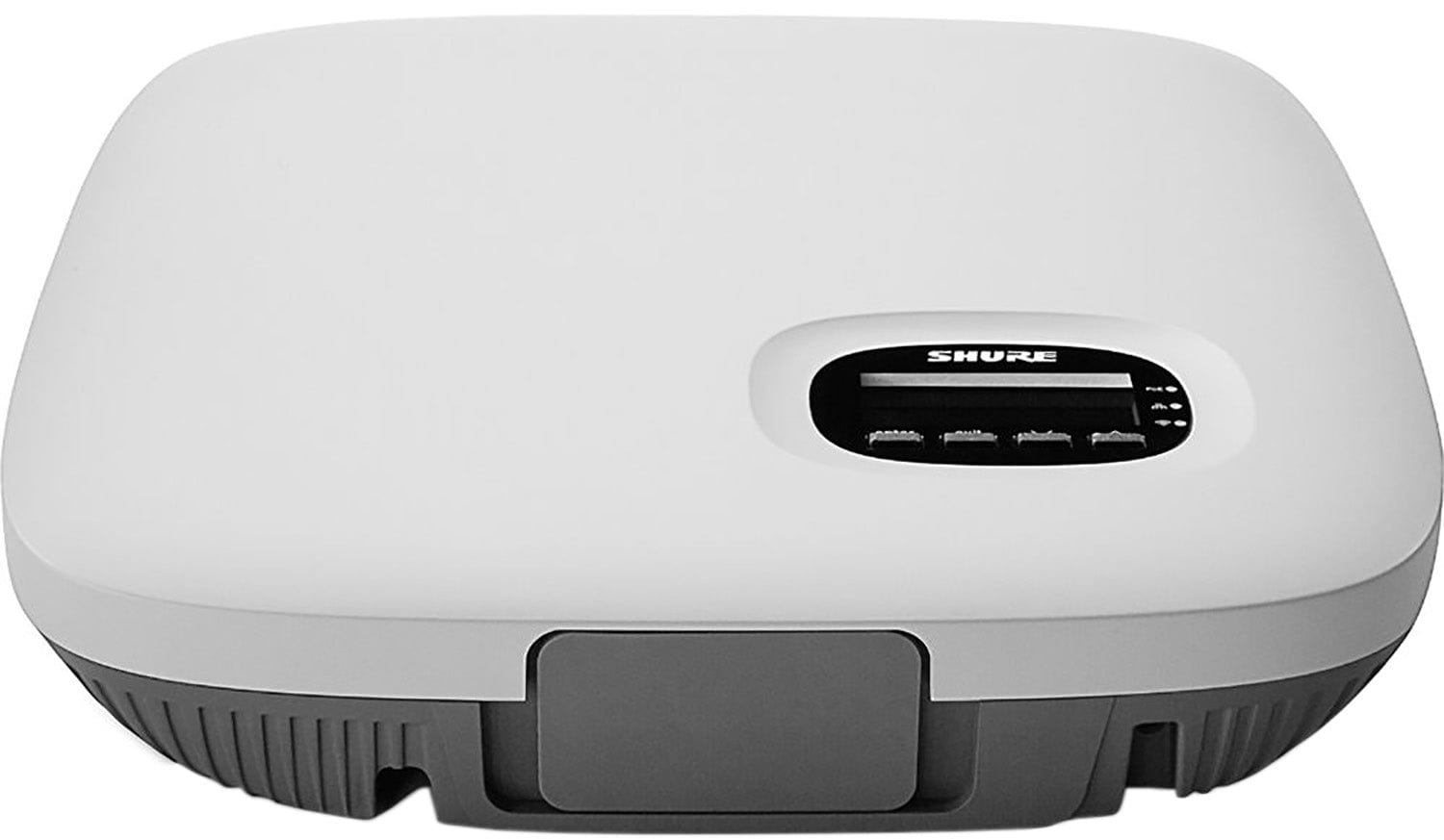

• LEDs indicate power, wireless connection, and network status

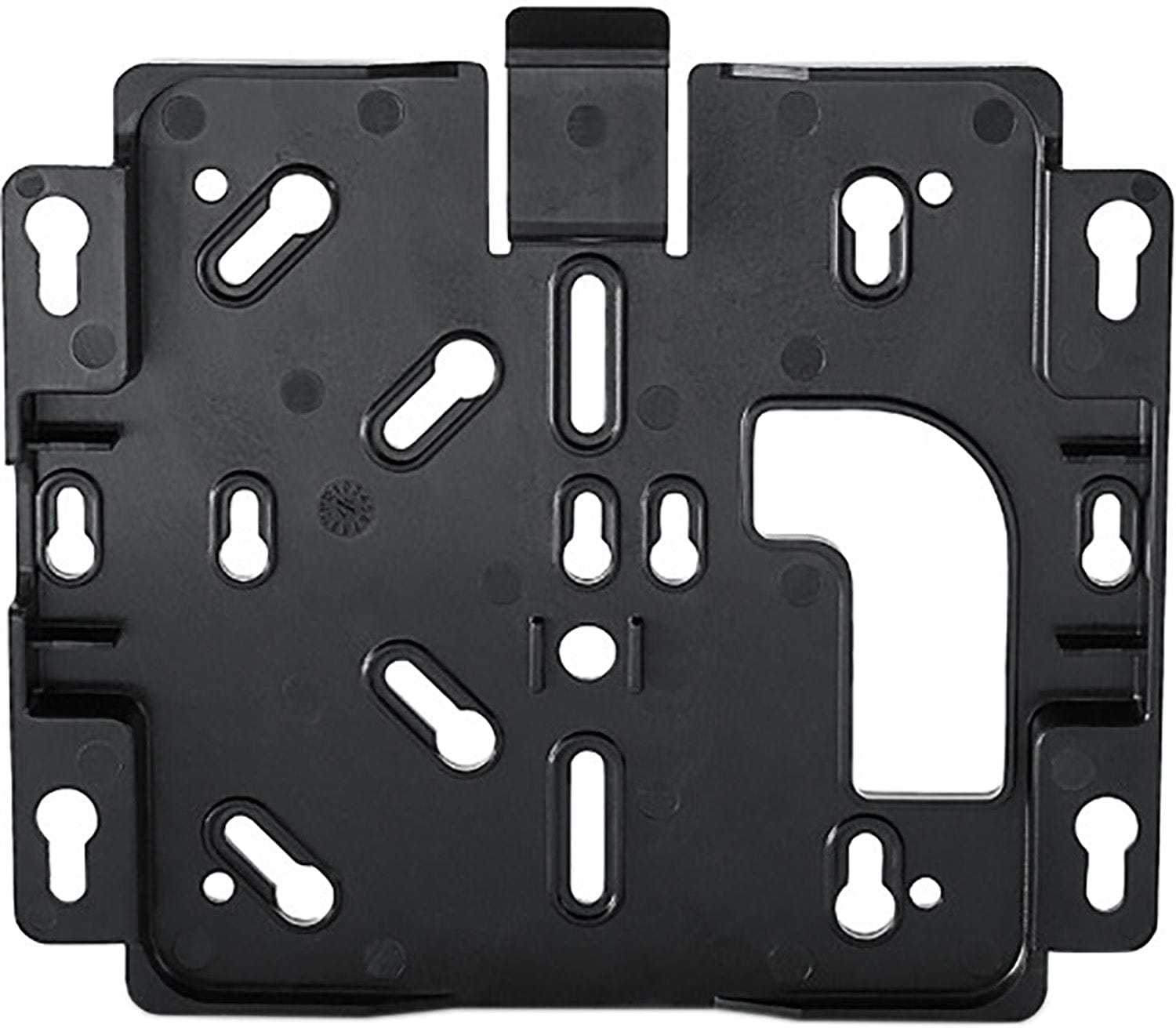

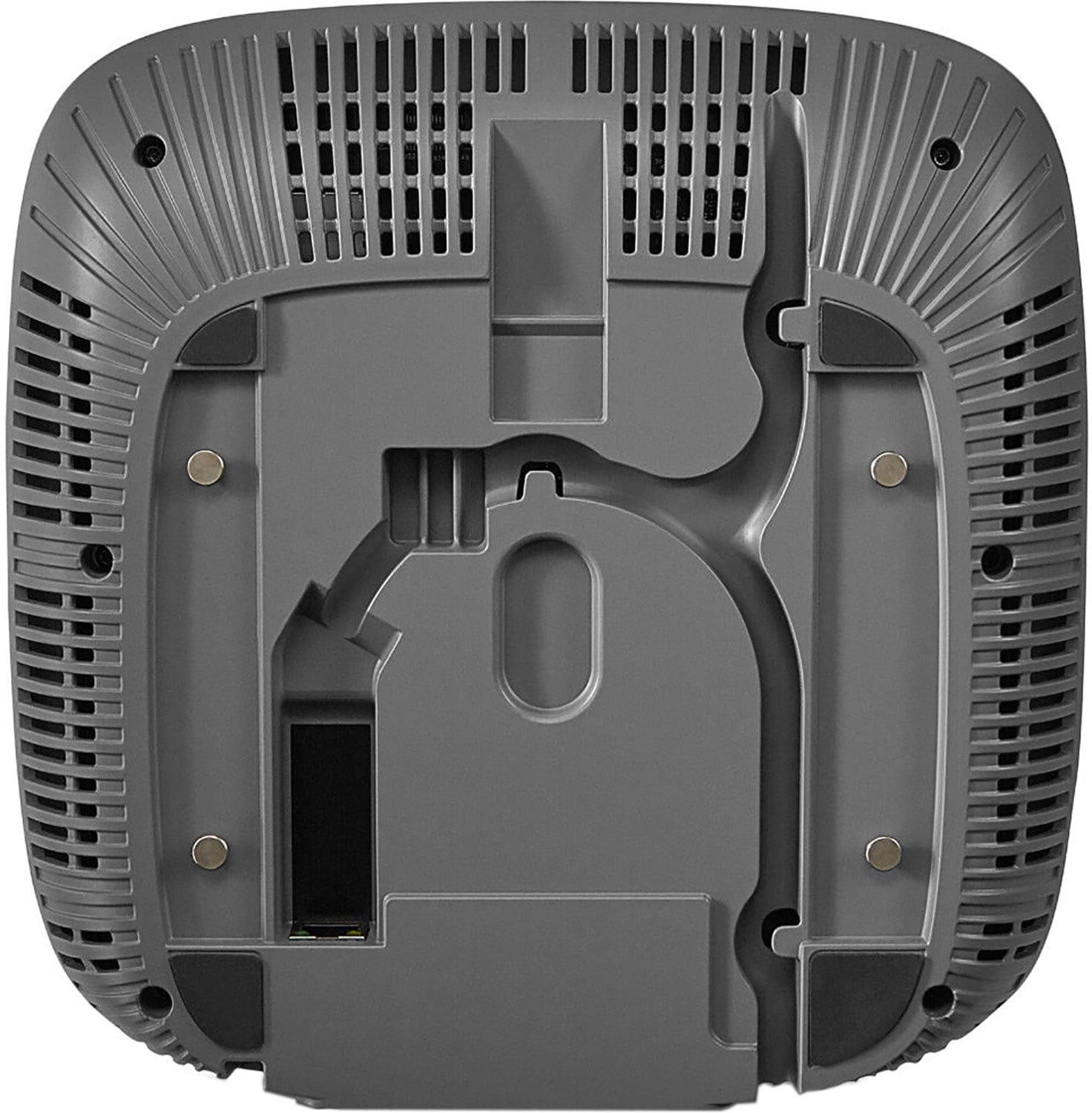

• Includes wall/ceiling mounting plate

Specifications:

• Analog Audio Inputs:
  • Maximum Input Level:
    • 24.9 dBV (1% THD+N, Measured at Dante Output, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
    • 10.3 dBV (1% THD+N, Measured at Dante Output, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
  • Frequency Response:
    • 22 Hz to 20 kHz (+0.5 dB/-3 dB, Measured at Dante Output, -6 dBFS Input, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
    • 22 Hz to 20 kHz (+0.5 dB/-3 dB, Measured at Dante Output, -6 dBFS Input, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
  • Total Harmonic Distortion/Noise:
    • 0.03%, Typical (Measured at Dante Output, -6 dBFS Input, 1 kHz, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW)
    • 0.02%, Typical (Measured at Dante Output, -6 dBFS Input, 1 kHz, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW)
  • Dynamic Range:
    • 115 dB [A-Weighted, 113 dB (Unweighted), Typical Measured at Dante Output, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW]
    • 112 dB [A-Weighted, 110 dB (Unweighted), Typical Measured at Dante Output, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW]
  • Equivalent Input Noise:
    • Preamplifier:
      • -92 dBV (A-Weighted, Typical Line Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW)
      • -104 dBV (A-Weighted, Typical Aux Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW)

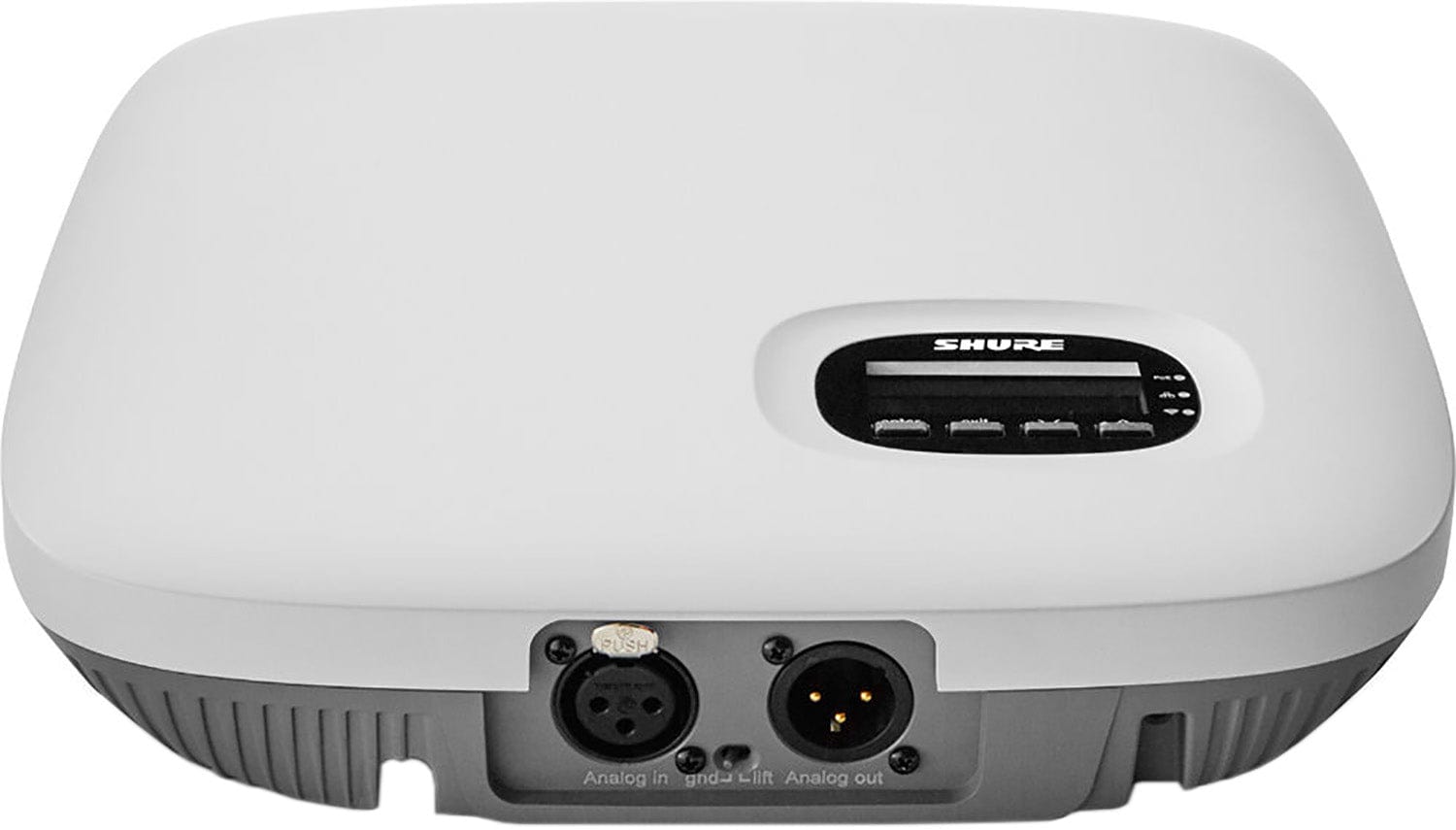

  • Connector Type: XLR-3-Pin Female (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)
• Analog Audio Outputs:
  • Maximum Output Level: 4.3 dBV (1% THD+N, Audio Injected at Dante Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB)
  • Frequency Response: 1 Hz to 20 kHz (+0.5 dB/-3 dB), Audio Injected at Dante Input, -6 dBFS Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB
  • Total Harmonic Distortion/Noise: 0.01% (Typical, Audio Injected at Dante Input, -6 dBFS Input, 1 kHz, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB, 22 Hz to 22 kHz BW)
  • Dynamic Range (Typical): 100 dB [A-Weighted, 97 dB (Unweighted), Typical Audio Injected at Dante Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB, 22 Hz to 22 kHz BW]
  • Load Impedance: >600 Ohms, Typical
  • Connector Type: 3-Pin XLR Male [Standard XLR Pinout (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)]
  • Ground Lift: XLR GND Lift Switch Position - 'Left (Pin 1-GND Connected) Right (Pin 1-GND Disconnected)'
  • Equivalent Noise Level: -104 dBV [A-Weighted, Typical Aux Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW], Input Impedance 10 Kilohms Line Level
  • Input Impedance:
    • 10 Kilohms, Line Level
    • 12 Kilohms, Aux Level
  • Configuration: Balanced
• RF Specification:
  • IEEE WLAN Standard: IEEE 802.11 a, g
  • Frequency Bands: 2.4 GHz ISM, 5 GHz UNII
  • Sensitivity: -80 dBm at 10% PER
  • RF Output Power: 1 mW (Low), 5 mW (Medium), 13 mW (High), 25 mW (Maximum)
  • Antenna Type: Proprietary Internal Bi-Level Dual-Band (PIFA), Patent Pending
• Power:
  • Supply Type: Power over Ethernet (PoE) 802.2 af, Class 0 PD
  • Supply Voltage: 37 to 57 V
  • Power Consumption: 12.95 W Maximum, 6.5 W Typical
• Network:
  • Interface: Gigabit Ethernet, Dante Digital Audio
  • Link: Speed - 10/100/1000 Mb/s
  • Network Addressing Capability: DHCP or Manual IP Address
  • Cable Length: 328' / 100 m Maximum
  • Cable Type: Cat 5e or Higher
• Display:
  • Type: Monochrome FFSTN LCD
  • Display Size: 1.84 x 0.074' / 46.7 x 18.8 mm
  • Display Resolution: 152 x 78 (78 ppi)
• General:
  • Housing: Molded Plastic, Die-Cast Aluminum
  • Mounting: Ceiling Bracket or Wall
  • Operating Temperature Range: 19.4 to 120.2° F / 7 to 49° C
  • Storage Temperature: -20.2 to 140° F / -29 to 60° C
  • Dimensions: 1.88 x 9.55 x 9.52' / 47.8 x 242.5 x 241.8 mm
  • Weight: 2.54 lb / 1.15 kg

The Shure MXCWAPT-A Wireless Access Point Transceiver is designed for conference settings. Ideal for event organizers, presenters, and AV technicians. It can manage up to 125 wireless conference units. It operates on 2.4 and 5 GHz frequency bands, has AES-128 encryption for privacy, and a Dante networked audio connection. It measures 1.88 x 9.55 x 9.52' / 47.8 x 242.5 x 241.8 mm and weighs 2.54 lb / 1.15 kg.
