Sennheiser XSW EK In-Ear Monitor Belt Pack Receiver with High-Quality Headphones (572 - 596 Megahertz)

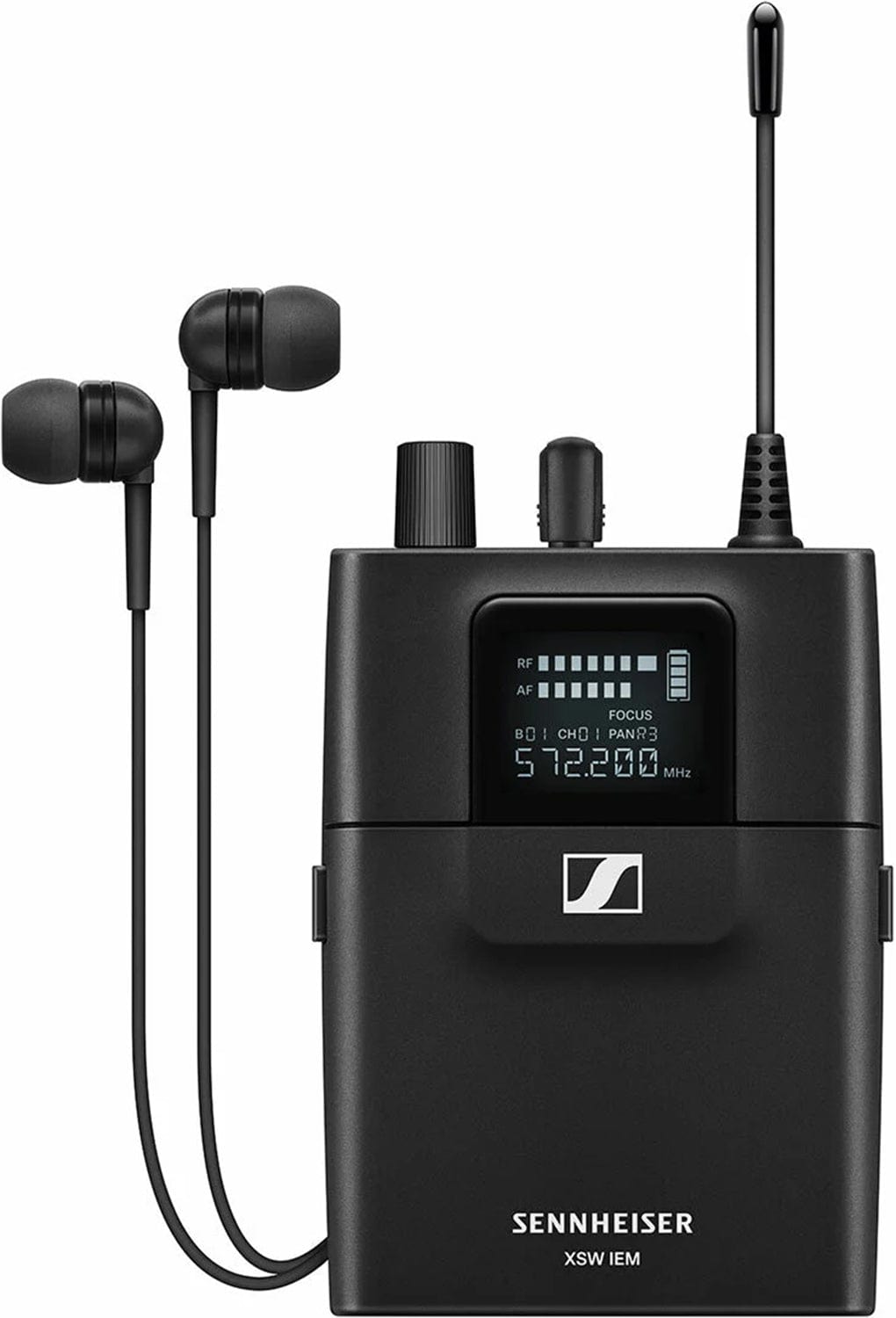

Discover the Sennheiser XSW IEM EK! It's a lightweight in-ear stereo monitoring bodypack receiver, part of the amazing XS Wireless IEM series. With this, you can effortlessly link more receivers to one transmitter, connecting band members for a new level of audio detail. The lightweight bodypack clips easily onto your clothing or belt, staying out of the way. You can use the included IE 4 headphones or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance. The front panel allows for easy individual fine-tuning of balance, focus modes, EQ, and limiter, so you can create your perfect mix.
Features:
- • Expand your XS Wireless IEM setup with this UHF bodypack receiver

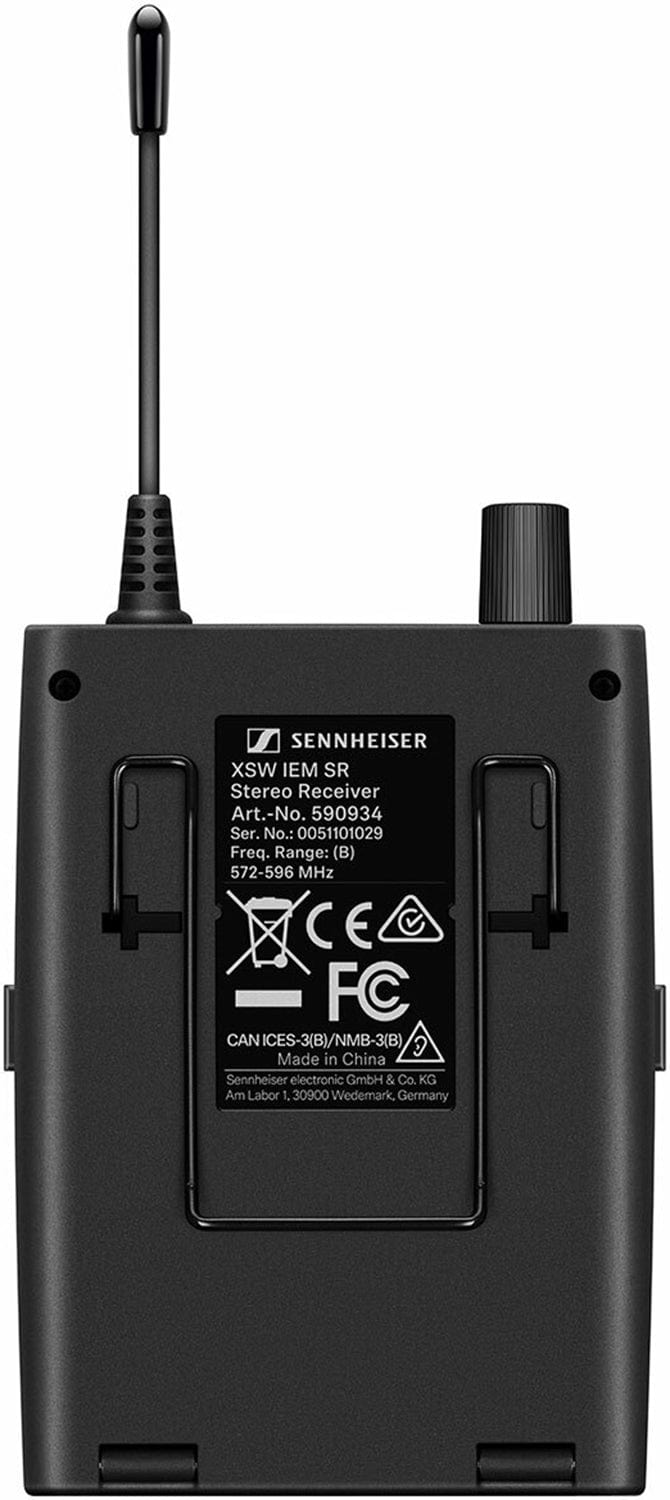

- • Lightweight bodypack with a rear clamp and a stage-proof control panel
- • Standard 3.5 mm jack plug for the supplied IE 4 headphones or optional in-ear sets

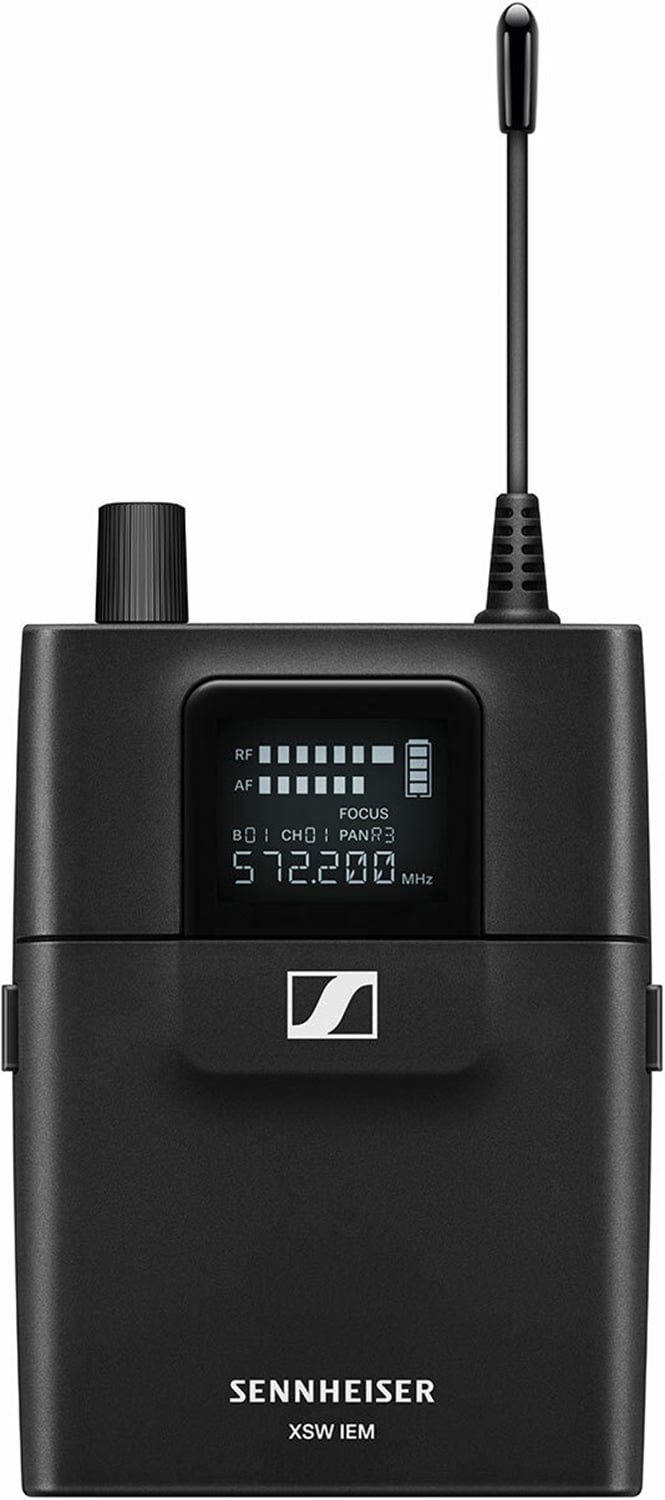

- • Backlit front panel and status LED for clear battery and link status
- • Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
- • Pan control for individual balance of the input channels
- • Operates with 2x AA primary cells or rechargeable batteries
Specifications:
- • Frequency range: 572 - 596 MHz
- • Dimensions: Approx. 95 x 70 x 26 mm
- • Weight (incl. batteries): ca. 110 g
- • Switching bandwidth: up to 24 MHz
- • Temperature Range: 0 °C to +40 °C
- • AF frequency response: 45 Hz to 15 kHz
- • Modulation: Wideband FM
- • Signal-to-noise ratio (1 mV, peak deviation): ≥ 8 dB
- • AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω
- • High Boost (EQ): +10 dB at 13 kHz
- • Total harmonic distortion (THD): ≤ 1 %
- • Limiter: -10 dB
- • Power supply: 2 AA batteries, 1.5 V
- • Operating time: Approx. 6 hrs
The Sennheiser XSW EK In-Ear Monitor Belt Pack Receiver is perfect for musicians and audio professionals on stage. Its lightweight design (approx. 95 x 70 x 26 mm, 110 g with batteries) clips easily to your belt or clothing. With a frequency range of 572 - 596 MHz, it offers reliable audio in a compact package. Use it with the included IE 4 headphones or upgrade. The backlit panel and status LED make it easy to manage settings, and it runs on 2 AA batteries for about 6 hours.
