Riedel C44 Artist Beltpack Master Station - The Ultimate Integration Solution
• Seamlessly integrate digital partylines in matrix intercom environments.
• Convert four two-channel CAT 5 matrix ports to four phantom powered beltpack lines.
• Up to 16 beltpacks can be daisy-chained on each line; one C44 can power up to 38 beltpacks.
• Features an integrated 24x24 ports digital intercom matrix for stand-alone use, configurable via Riedel's audio assignment software.
• Pre-programmed configurations can be loaded via DIP switches on the front.
• Full digital interfacing for Artist and Performer 32 matrix systems.
• Analog 4-wire I/Os and GPIs for interfacing to 3rd party intercom systems.
• Provides short-circuit protection on each powered line individually.

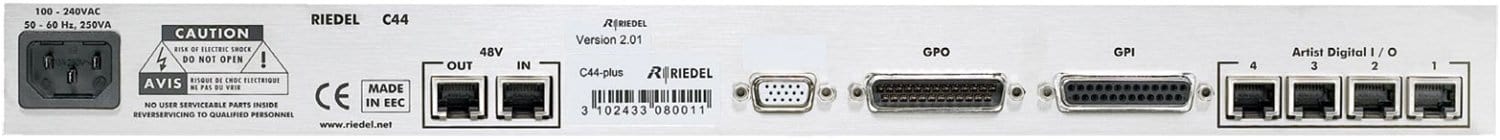

• Separate DC inputs and outputs at the rear for redundant power.
Specifications:
- Power Supply:
- Output voltage: +48V DC ± 5%
- Output current: 3 A max.total
- Short circuit protection: per individual line
- Short circuit reset time: 500 ms
- Power requirements: 85 – 265 V AC / 47 – 63 Hz
- Power consumption: 170 VA with full load (38 x C3)
- Max. Distance / Cable Type:
- Cable type C44 to matrix: CAT5 FTP, 4x2 AWG24
- Cable type Partyline: XLR Microphone cable
- Between any two Performer devices: up to 300 m (1000 ft)
- Max. partyline length: 2.5 km (1.5 miles)
- Dimensions:
- H x W x D: 44 (1 RU) x 483 x 242 mm
- Mass: 3550 g (7.82 lb)
The Riedel C44 Artist Beltpack Master Station is designed for professionals in the audio and intercom industry. It's perfect for seamless integration of digital partylines in matrix intercom environments. With its compact size (44 (1 RU) x 483 x 242 mm) and weight of 3550 g (7.82 lb), it's easy to install and use. It offers features like converting matrix ports to beltpack lines, short-circuit protection, and redundant power options. Ideal for those looking to enhance their intercom systems.
